Biodiesel Machine

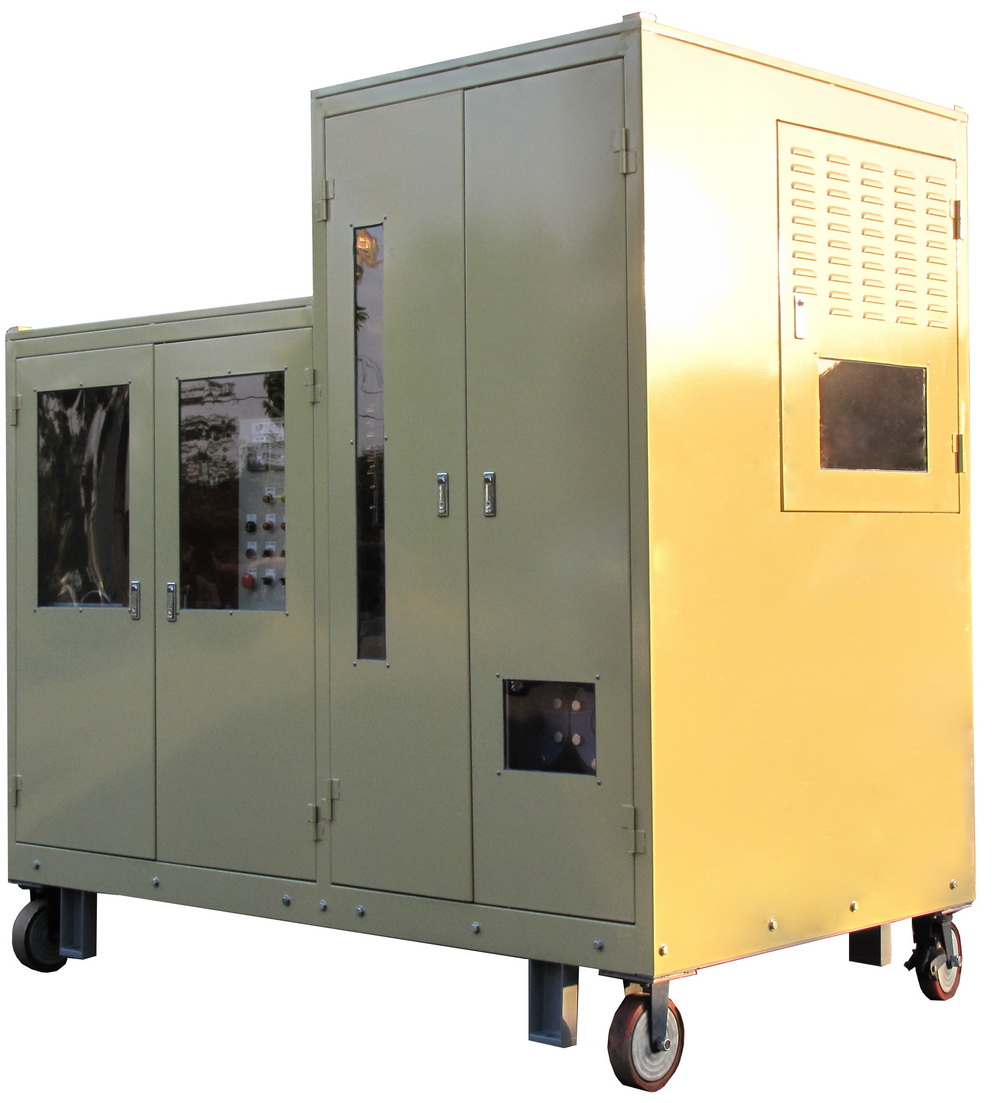

Compact Bio-diesel Kit

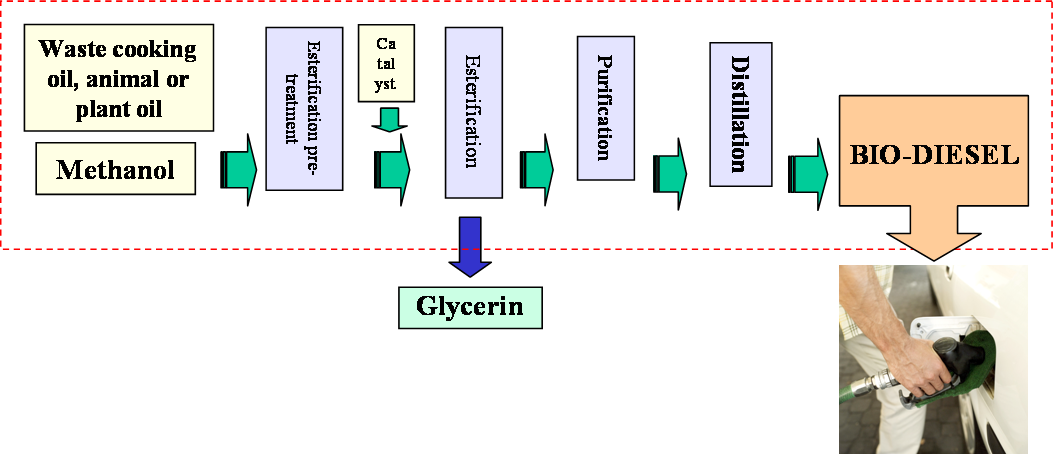

Process of producing Bio-diesel
●Can produce up to100 gallon/day
●No waste water byproducts
●Can process recycled oil with acidity less then 20 mg KOH/g
●Friendly user interface and systems alert module
●Bio-Diesel can be mixed with fossil diesel

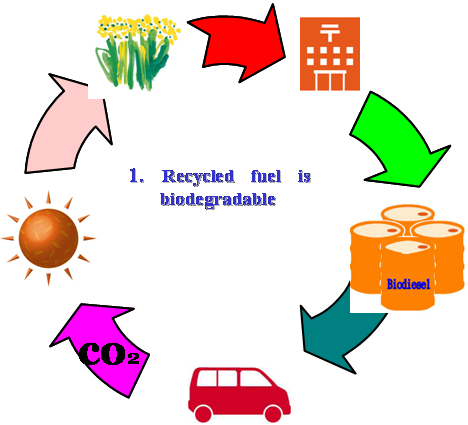

Benefits of Bio-Diesel
Bio-Diesel definition
By converting animal oil, plant oil, or waste cooking oil into fuel which can be either mixed with fossil diesel or used directly. 100% pure Bio-Diesel is called B100.
Why Compact Bio-diesel Kit？
The compact bio-diesel kit is ideal for users who has the source material (waste cooking oil, animal oil, or plant oil). Using the compact bio-diesel kit, users can convert their low-cost source material into bio-diesel, which can power diesel vehicles, generators, bulldozers, or agricultural machineries. Along with the transportation cost savings, the relative cost of fuel can be reduced efficiently.
Cost saving estimation
Fossil diesel cost NT$30/liter, Bio-diesel production cost using bio-diesel kit NT$10/liter, source material is free. Annual savings：(30-10)x300x300= NT$1,800,000.
● Capacity : 100 Gallon
● Power : 3φ/220V/2.5kw
● Weight : 880 KG
● Volume : 2000mm X 1400mm X 2300mm
● Material Tank : 1250mm X 500mm X 1030mm
● Diesel Tank : 780φ X 1340mm

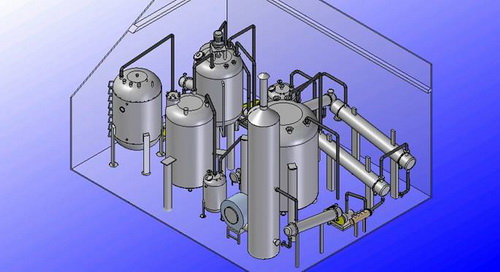

● System including : Glycer in Separator 、 Transester ification Reactor 、 Purification 、 Mixer 、 Pumper 、 Collector 、 Gas Dispenser.
